TURN-KEY
We give complete solution support to our clients including mechanical design, quality Inspection setup and world class production. Being exporter to Americas and Europe, we provide complete mechanical design as per ASME or DIN/PED standards.
Scope of Supply Includes:
DESIGN
- Structural, Mechanical, Thermal
- Piping, 3D modelling, Isometrics
- Automation architecture support
MANUFACTURING
- Process equipment
- Reactor, column, Feed tanks, Heat exchangers
- Insulation
- Motors and Pumps
PIPING
- Process lines, Air Line
- CIP (Cleaning-In-Place) system
- Fire Protection
- Valves & Fittings
INSTRUMENTAION
- Control panel
- Electrical – control & power cabling
- Instrumentation – ex-proof and Intrinsically safe
- Lighting & Switches
TESTING
- Material testing/PMI
- NDT testing
- Hydro/pneumatic test
- Loop checking
- Dry run
- Load running trial
- Factory acceptance test
STRUCTURE
- Maximum module size: 4m X 4m X 20m, No. of modules as per requirement
- Standard module size: suitable for 20-40 ft containers
- Access stairs, emergency egress, Jib cranes, platforms
- Explosion proof lighting, Eye wash & showers

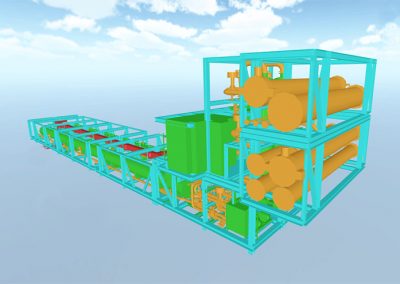

Skid 3D Layout
Piping and Instrumentation
Biodiesel Skid
Filter Skid

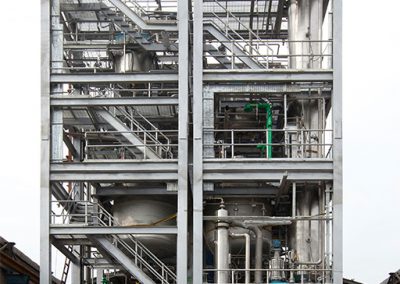

Skid Mounted Plant
Reactor Skid
Purged Panel for Aromatics Plant

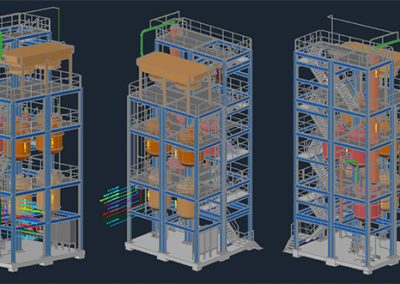

Plant 3d Model

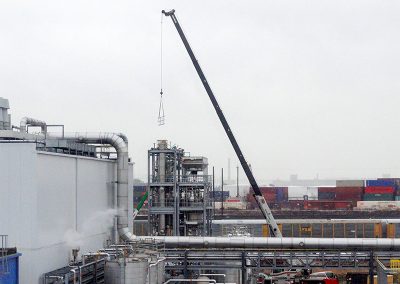

Plant Installation US
Horizontal Skid
Modular Solvent Recovery Plant
